Woo Audio WA33 Fully Balanced Headphone Amplifier- JPS Labs ABYSS Edition
Woo Audio WA33 Fully Balanced Headphone Amplifier- JPS Labs ABYSS Edition

Woo Audio WA33 Fully Balanced Headphone Amplifier- JPS Labs ABYSS Edition


Regular price$13,495.00
/
Shipping included in price.
  • Free worldwide shipping
MADE TO ORDER - 2-3 WEEKS TO SHIP

The newly developed WA33 is a state-of-the-art, fully balanced headphone amplifier that raises the bar in setting a new reference in music reproduction.

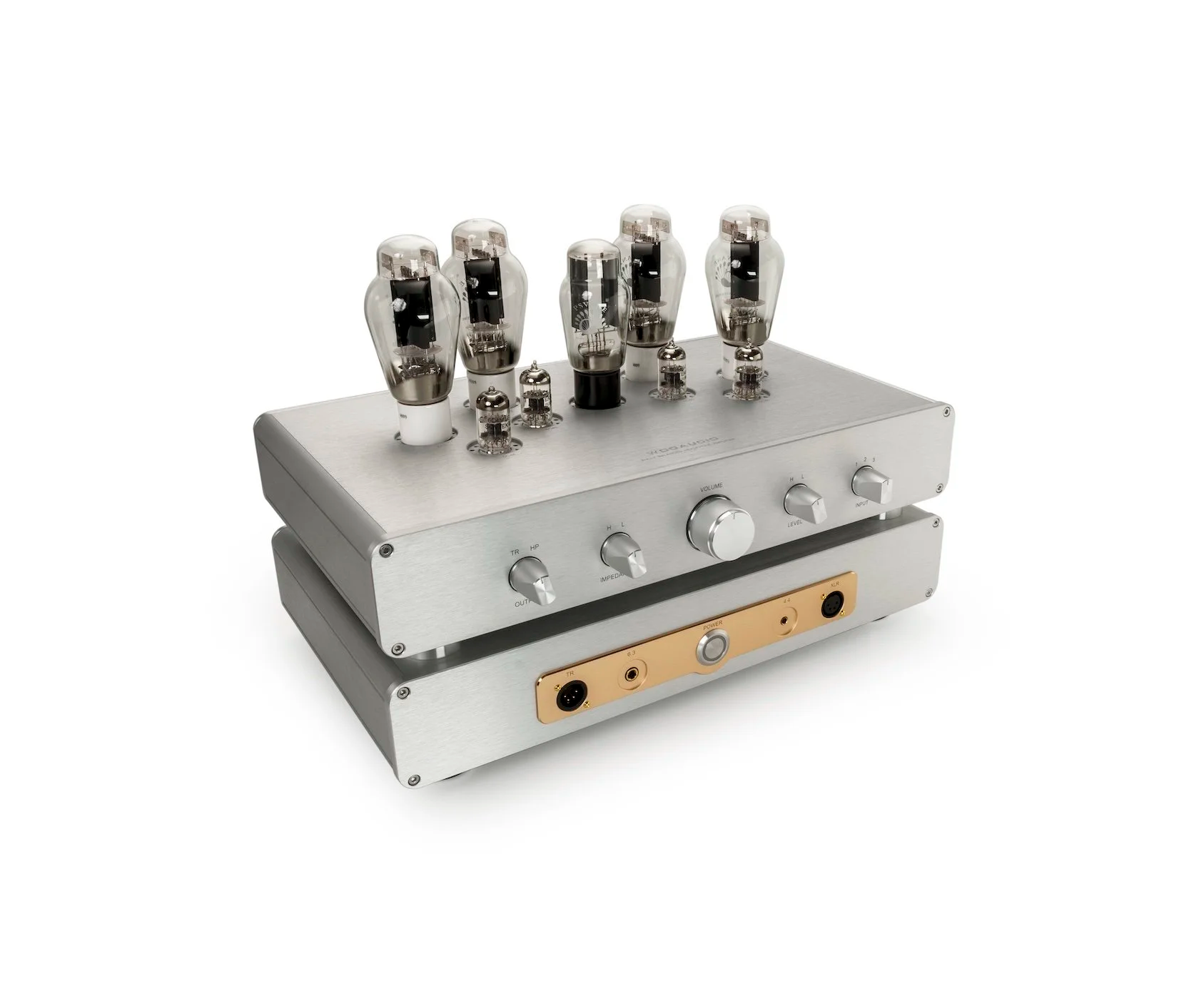

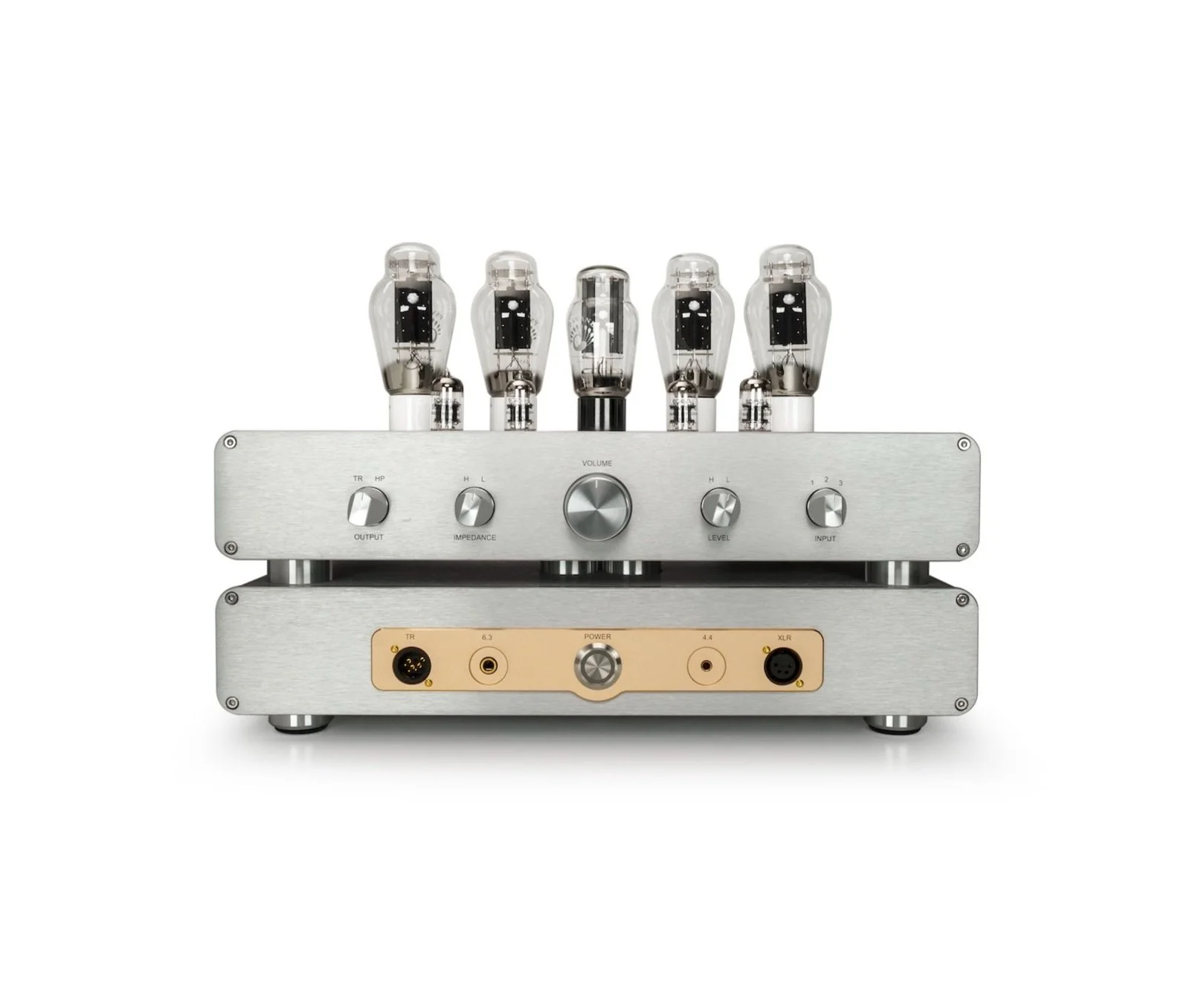

The WA33 employs a true fully balanced design in a compact form factor, featuring a quad (four) of 6C45 tubes for the driver that pushes a quad (four) of 2A3 tubes for the power, and all in direct-heated triodes. It delivers high power to drive demanding headphones to their full potential while maintaining a low noise floor.

The WA33 is a dual chassis design with separate power supply section. This approach eliminates any interference to critical audio components. Additionally, our internal coupling architecture (ICA) technology allows the WA33 amplifier to merge with the power supply unit without an external umbilical cord- two components as one. The ICA shortens the signal path and thus significantly reduces unwanted electrical interference and raises sound performance to a level beyond what anyone has previously experienced in a headphone system.

The WA33 reveals the most delicate detail with the highest level of refinement. Complex music passages are handled with ease and authority. The expansive soundstage, holographic imaging, and rich tones that are pristine, natural, and vivid create a sense of realism that gives the user a euphoric listening experience. With the WA33, music comes alive!

This JPS Labs ABYSS Edition features internal Alumiloy® wiring by JPS Labs, noted for their unique ability to provide life-like clarity and full range coherent sound from the lowest lows to beyond audibility [JPS Labs, the parent company of ABYSS Headphones, designs and manufactures cables for everything ABYSS].

Also part of this JPS Labs ABYSS Edition are tube upgrades chosen to mate with the ABYSS AB1266 headphone.

Abyss Headphones considers the WA-33 JPS Labs Edition to be finest tube headphone amplifier money can buy to mate with their AB-1266 Phi TC headphone, or any other high performance headphones that appreciates high dynamic power and grace.

  • Fully balanced design throughout (4 channels of amplification)

  • Tube compliment: Electro Harmonix Gold pin 6C45Pi driver tubes x 4, Psvane ACME 2A3 power tubes x 4, and Psvane ACME 274B rectifier x 1

  • Polytetrafluoroethylene (PTFE) tube sockets

  • Push Pull, Class-A

  • Transformer-coupled, Point-to-Point wiring, custom JPS Labs Alumiloy® wiring in all critical areas.

  • Internal Coupling Architecture (ICA) with buss bar style power supply connections.

  • XLR input x 2, RCA input x 1

  • Outputs: Dual 3-pin XLR (left and right channel), 4-pin XLR x 1 and 1/4" (6.3mm), XLR x 1 preamp

  • User selectable output: pre-amp or headphone

  • User selectable HI/LO impedance and HI/LO level for headphone

  • Headphones impedance: 8—600 Ohms

  • Frequency response: 10Hz— 60kHz, -2dB

  • Power output: up to 10 watts per channel

  • Signal/Noise: > 95 dB, THD: < 0.05%, 1kHz

  • Anodized aluminum chassis, available in black or silver

  • Self-biasing with compatible tubes [chart]

  • Power consumption: 150w

  • Voltage: AC 100 - 120V 60HZ or AC220 - 240V, 50HZ, voltage built to destination country

  • Dimensions: 17.5"(W), 12"(D), 7.5"(H) without tubes, weight: 55 lbs

Each amplifier is hand assembled for you and ships to your door in approximately 2-3 weeks. Recommended cables: JPS Labs Superconductor 4 or  best Aluminata XLR interconnects and JPS Labs Kaptovator Lite or best Aluminata AC cables.



SPECIAL ORDER, YOUR CHARGE IS NON-CANCELABLE, PRODUCT IS NON-RETURNABLE. EXPECT 2-3 WEEKS FOR DELIVERY.
